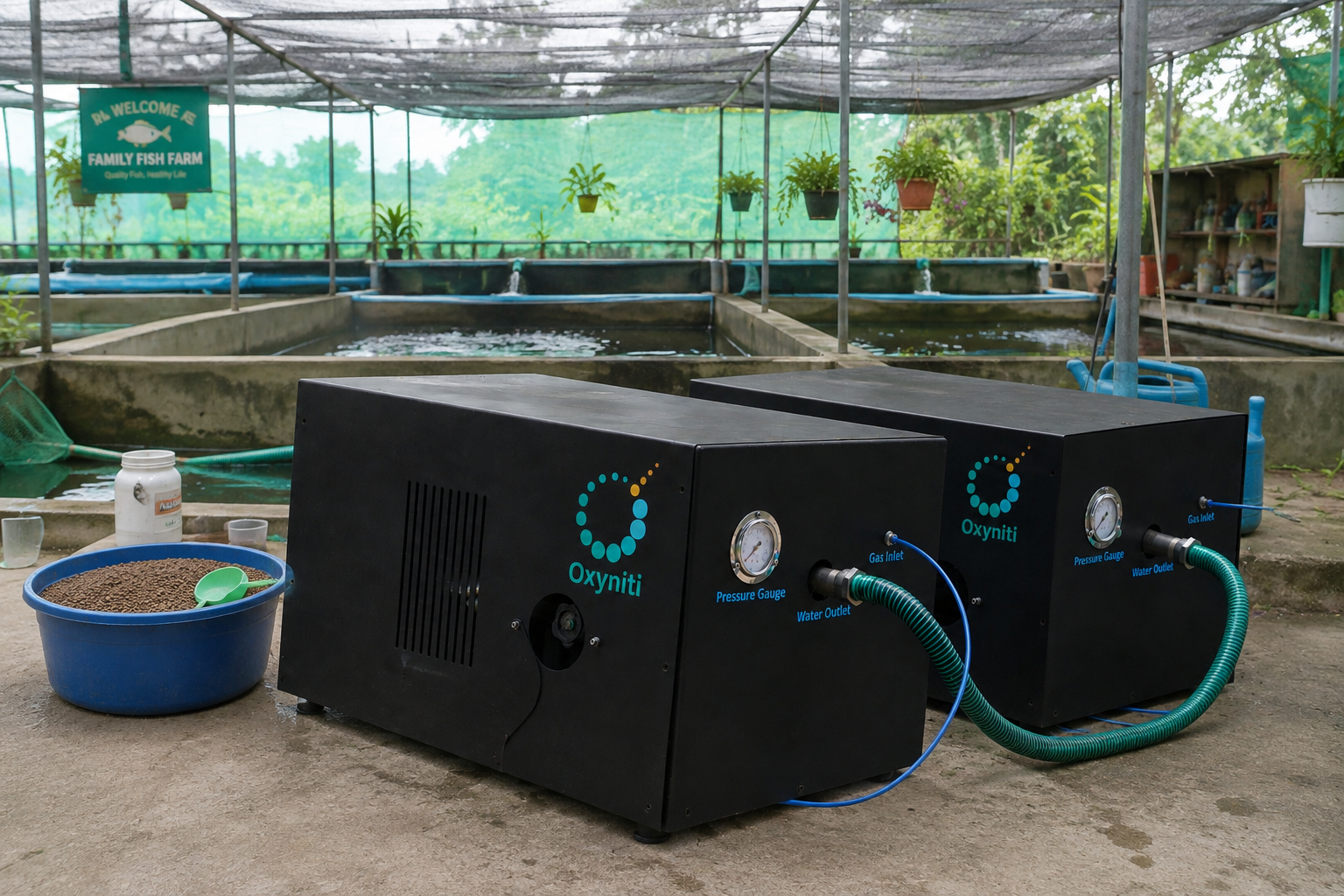

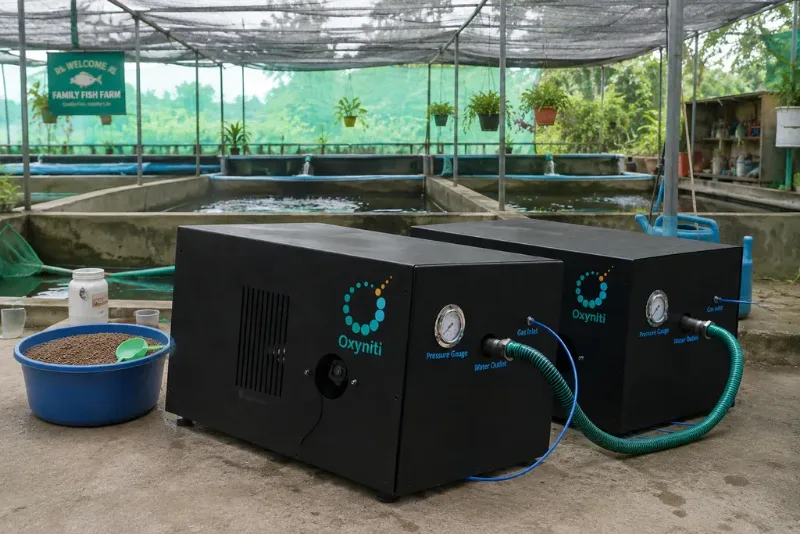

Nano Bubble Generator 4 HP
₹4400
Pump & Motor
- Pump Model: CRI MHS-16
- Power Rating: 4 HP, 3-Phase, 440 V
- Pump Type: Stainless-Steel Horizontal Multistage High-Flow Pump
- Engineered for higher circulation rates and large water bodies
- Motor Features: Copper winding, thermal protection, Class F insulation, IP44 enclosure
- Maximum Liquid Temperature: +85°C
- Maximum Suction Lift: 1.5 m
Oxygen Input & Gas Handling
- Oxygen Input Capacity: Up to 6 LPM
- Designed for high-flow oxygen absorption
- Integrated stainless-steel nanobubble mixer for efficient gas–liquid interaction
- Stable nanobubble output even at higher water flow rates
Nanobubble Performance
- Ultra-fine bubbles typically <100 nm
- High-volume oxygen dissolution
- Ideal for large ponds, industrial water systems & high-BOD treatment
Connections
- Inlet/Outlet: Customizable (typically 1.5–2 inch)
Applications
- Commercial aquaculture (shrimp, fish)
- Industrial wastewater treatment
- Lake & pond remediation
- Large-scale hydroponics & agri-tech systems
