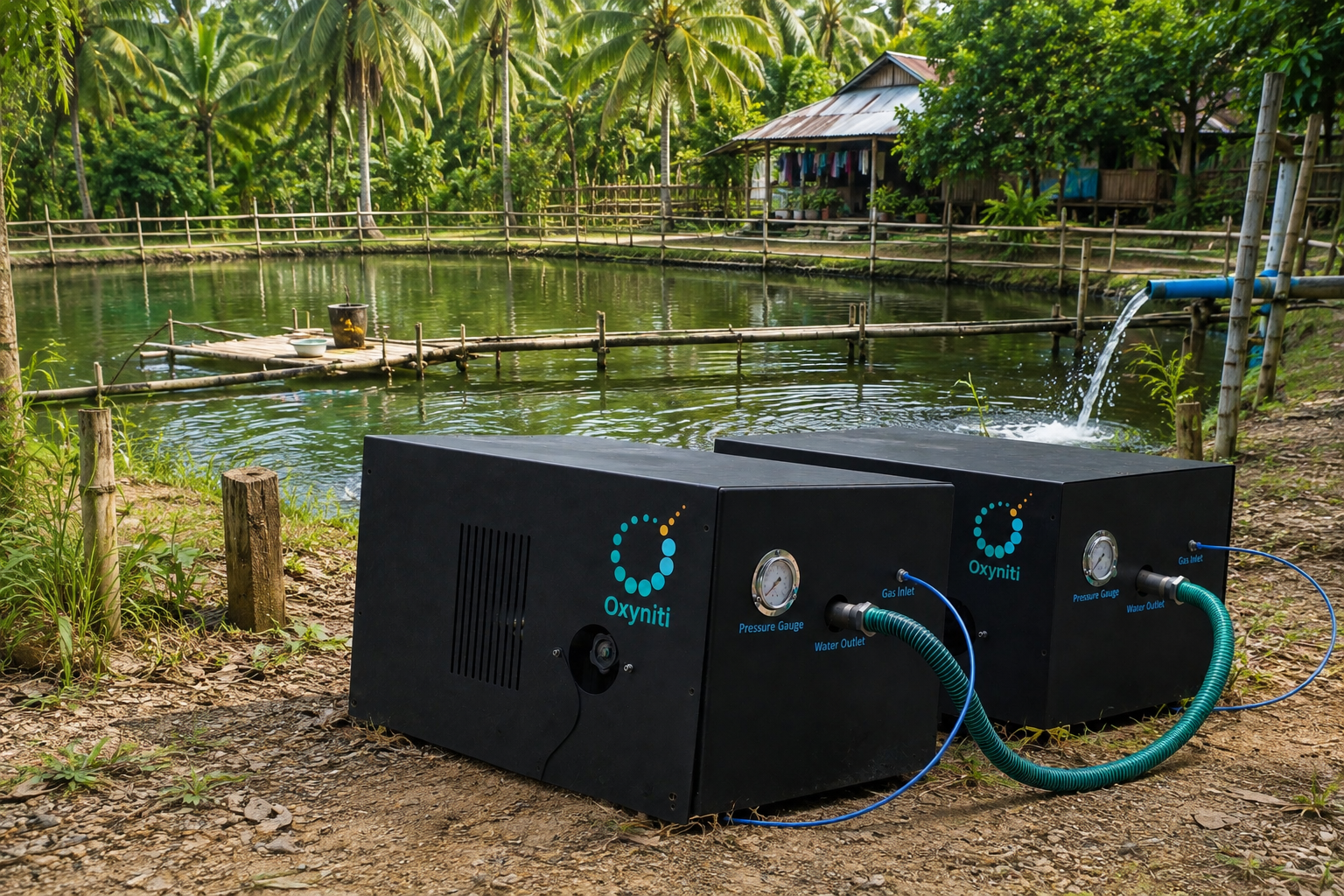

Nano Bubble Generator 1.5 HP
₹4400
Pump & Motor
- Pump Model: CRI MHC series pumps
- Power Rating: 1.5 HP, 3-Phase, 440 V
- Pump Type: Stainless-Steel Horizontal Multistage Centrifugal Pump
- Maximum Liquid Temperature: +65°C
- Maximum Suction Lift: 1.5 m
- Motor Features: Copper winding, thermal protection, Class F insulation, IP44 enclosure
- Operating Ambient Temperature: Up to +40°C
Oxygen Input & Gas Handling
- Oxygen Input Capacity: Up to 2 LPM
- Compatible With: PSA oxygen concentrator / oxygen cylinder
- Gas–liquid mixing via high-efficiency stainless-steel mixer
- Designed for stable nanobubble generation with deep dissolution
Nanobubble Performance
- Bubble Size Range: Typically <100 nm
- High oxygen dissolution and enhanced OTE
- Suitable for continuous aeration in aquaculture & water treatment
Connections
- Inlet/Outlet: Tailor-made to customer requirements (common: 1–1.5 inch)
Applications
- Aquaculture ponds
- Hydroponics & horticulture fertigation
- Small-to-medium wastewater aeration units
- R&D and pilot-scale water systems
